Introduction
GitHub Actions has revolutionized CI/CD workflows, but sometimes, the limitations of GitHub-hosted runners become apparent. Perhaps you need custom dependencies, better performance, or more control over your build environment. Self-hosted runners are the answer, and when combined with Kubernetes’ scalability, you get a powerful and flexible CI/CD platform. In this post, I’ll walk you through how I used Ansible to deploy GitHub’s Actions Runner Controller (ARC) on a Kubernetes cluster, enabling you to autoscale your self-hosted runners based on demand.
Why Autoscaling and Kubernetes?
- Efficiency: No more idle runners consuming resources when there’s no work.
- Scalability: Automatically spin up more runners during peak periods to handle increased workloads.
A Brief History of ARC
Initially, ARC started as a community-driven initiative, designed to enable autoscaling of GitHub’s self-hosted runners on Kubernetes.
The project was later adopted and officially supported by GitHub, solidifying ARC as the go-to solution for managing self-hosted runners on Kubernetes.
More information on ARC’s architecture and how it works.
Prerequisites
A Kubernetes Cluster
If you don’t already have a Kubernetes cluster, tools like Kubespray can simplify the deployment process, allowing you to get up and running quickly. Please refer to https://kubespray.io/ for the installation guide.
Bastion Host with Kubeconfig
If your Kubernetes cluster isn’t directly accessible, you’ll need a bastion host with a valid kubeconfig file to interact with the cluster.
Helm with Diff Plugin
The package manager for Kubernetes. Make sure to also install the diff plugin for convenient configuration previews. Ansible will prioritize using the Helm diff plugin to compare the current and desired states of your Helm releases, ensuring efficient and accurate updates.
More info:
Ansible
Our automation tool of choice. You’ll need the kubernetes.core collection installed (ansible-galaxy collection install kubernetes.core).
Additionally, you might want to have a custom Docker image that contains all the required dependencies for your projects.
GitHub Credentials
You’ll need either a Personal Access Token (PAT) with the appropriate permissions or credentials for a GitHub App to allow ARC to interact with your repositories.
More about GitHub App and PAT authentication here.
Playbook Breakdown
The following folder structure demonstrates the organization of my playbook for provisioning deployments on a Kubernetes cluster.
ansible-playbook/
inventory/
group_vars/
all.yml
k8s.ini
roles/
arc/
tasks/
main.yml
vault/
.gitignore
password
k8s.yml
all.yml is where I put global variables and Ansible-encrypted secrets, like the GitHub PAT.
github_runner_token: !vault |
$ANSIBLE_VAULT;1.1;AES256
386238343561373461643835323433346433643...
The k8s.ini is a straightforward file that contains solely a bastion host, which I refer to as kconfig.
kconfig ansible_host=<an ansible host where a valid kubeconfig resides>
vault/password holds the Ansible Vault password and should never be included in version control!
The k8s.yml serves as the playbook encompassing all roles you want to deploy.
- name: Deploy K8s services
hosts: kconfig
roles:
- role: k8s/arc
- role: ...
ARC Role Breakdown
Three straightforward tasks must be defined.
- name: Namespace
kubernetes.core.k8s:
# ... (Creates the arc-system namespace)
- name: Scale set controller
kubernetes.core.helm:
# ... (Deploys the scale set controller)
- name: Scale set
kubernetes.core.helm:
# ... (Deploys the scale set)
Namespace
This task creates a Kubernetes namespace called arc-system if it doesn’t already exist. Namespaces are a way to divide cluster resources between multiple users.
- name: Namespace
kubernetes.core.k8s:
state: present
definition:
apiVersion: v1
kind: Namespace
metadata:
name: arc-system
Scale Set Controller
This task uses Helm to install the GitHub Actions runner scale set controller in the arc-system namespace. The controller is responsible for managing the lifecycle of the runners in the scale set.
- name: Scale set controller
kubernetes.core.helm:
state: present
chart_ref: oci://ghcr.io/actions/actions-runner-controller-charts/gha-runner-scale-set-controller
release_name: scale-set-controller
release_namespace: arc-system
This controller, by default, generates a Service Account equipped with all necessary permissions for operation. Additionally, the Service Account’s name is prefixed by the Helm release name. This Service Account will be required for the scale set below.
Please refer to https://github.com/actions/actions-runner-controller/blob/master/charts/gha-runner-scale-set-controller/values.yaml for all possible customizations.
Scale Set
This task uses Helm to install the GitHub Actions runner scale set in the arc-system namespace. The scale set is a group of runners that can be scaled up and down based on demand. The configuration for the scale set is provided in the values field. This includes the GitHub token, the minimum and maximum number of runners, and the specification for the runner pods. The runner pods have three containers:
- init-dind-externals: This init container copies the externals directory from the runner image to a shared volume. This directory contains the Docker in Docker (DinD) binaries that are used by the runner.
-
runner: This is the main container that runs the GitHub Actions runner. You might want to create your own image based on
ghcr.io/actions/actions-runner:latest. - dind: This container runs the Docker daemon that is used by the runner to execute Docker commands.
The runner and DinD containers share three volumes:
- work: This volume is used to store the runner’s work directory.
- dind-sock: This volume is used to share the Docker socket between the runner and DinD containers.
-
dind-externals: This volume is used to share the DinD binaries between the
init-dind-externalsand runner containers.
- name: Scale set
kubernetes.core.helm:
state: present
chart_ref: oci://ghcr.io/actions/actions-runner-controller-charts/gha-runner-scale-set
release_name: arc-scale-set
release_namespace: arc-system
values:
controllerServiceAccount:
name: scale-set-controller-gha-rs-controller
namespace: arc-system
githubConfigUrl: https://github.com/<your-org>
githubConfigSecret:
github_token: ""
minRunners: 0
maxRunners: 10
template:
spec:
initContainers:
- name: init-dind-externals
image: ghcr.io/actions/actions-runner:latest
imagePullPolicy: Always
command: ["cp", "-r", "-v", "/home/runner/externals/.", "/home/runner/tmpDir/"]
volumeMounts:
- name: dind-externals
mountPath: /home/runner/tmpDir
containers:
- name: runner
image: ghcr.io/actions/actions-runner:latest
imagePullPolicy: Always
command: ["/home/runner/run.sh"]
env:
- name: DOCKER_HOST
value: unix:///var/run/docker.sock
volumeMounts:
- name: work
mountPath: /home/runner/_work
- name: dind-sock
mountPath: /var/run
- name: dind
image: docker:dind
args:
- dockerd
- --host=unix:///var/run/docker.sock
- --group=$(DOCKER_GROUP_GID)
env:
- name: DOCKER_GROUP_GID
value: "1001"
securityContext:
privileged: true
volumeMounts:
- name: work
mountPath: /home/runner/_work
- name: dind-sock
mountPath: /var/run
- name: dind-externals
mountPath: /home/runner/externals
volumes:
- name: work
emptyDir: {}
- name: dind-sock
emptyDir: {}
- name: dind-externals
emptyDir: {}
Execution and Verification
Remember to specify the vault password file when executing the playbook:
ansible-playbook -i inventory/k8s.ini k8s.yml --vault-password-file ./vault/password
This process may take some time.
Upon completion, you should observe the controller and listener pods in the namespace:
$ k get po -n arc-system
NAME READY STATUS RESTARTS AGE
arc-scale-set-7948666d-listener 1/1 Running 0 92m
scale-set-controller-gha-rs-controller-5b86b78cf9-cfrb4 1/1 Running 0 5h9m

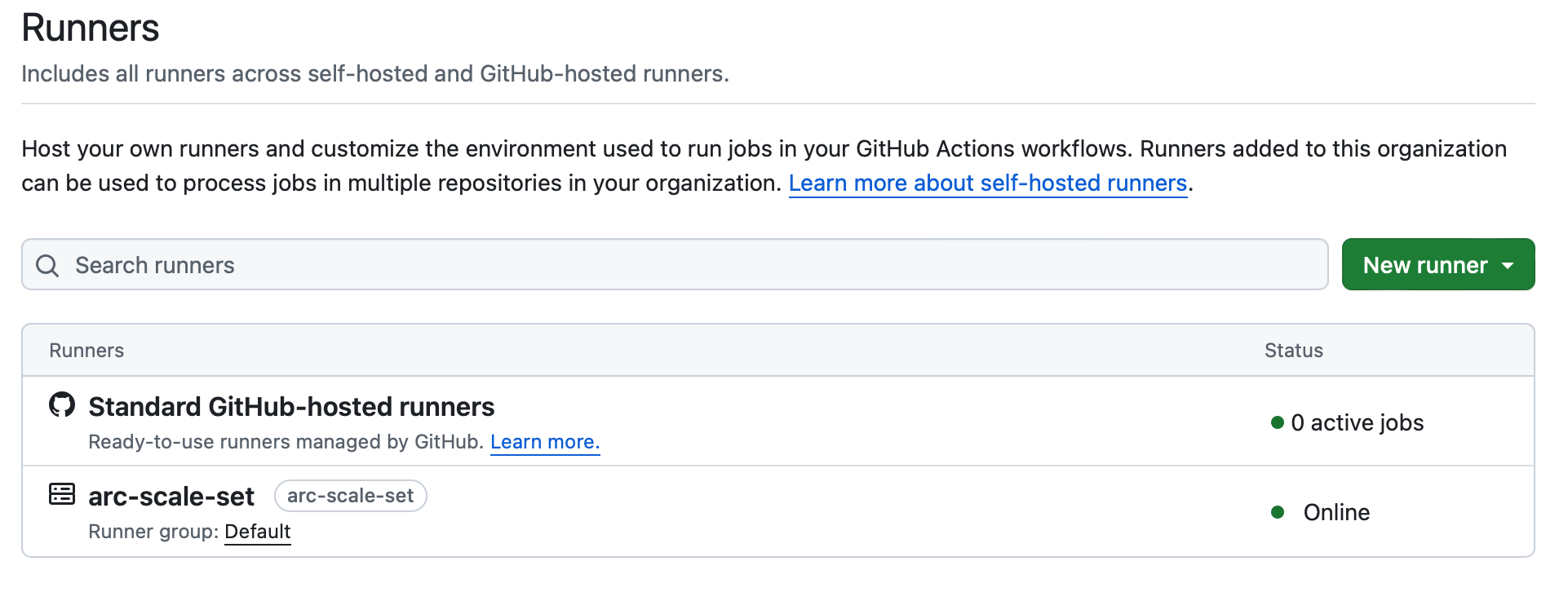

Then, navigate to your GitHub organization settings, select Actions, then Runners. Here, you should see the scale set online and ready to accept jobs.
Using ARC in a Workflow
Did you observe the arc-scale-set label next to the arc-scale-set runner? By default, the scale set employs the Helm release name as the label for that runner. In our GitHub Workflows, it’s necessary to specify the label of our self-hosted runners for the job to execute on, as opposed to the commonly used ubuntu-latest, which is hosted by GitHub.
jobs:
<job name>:
runs-on: arc-scale-set

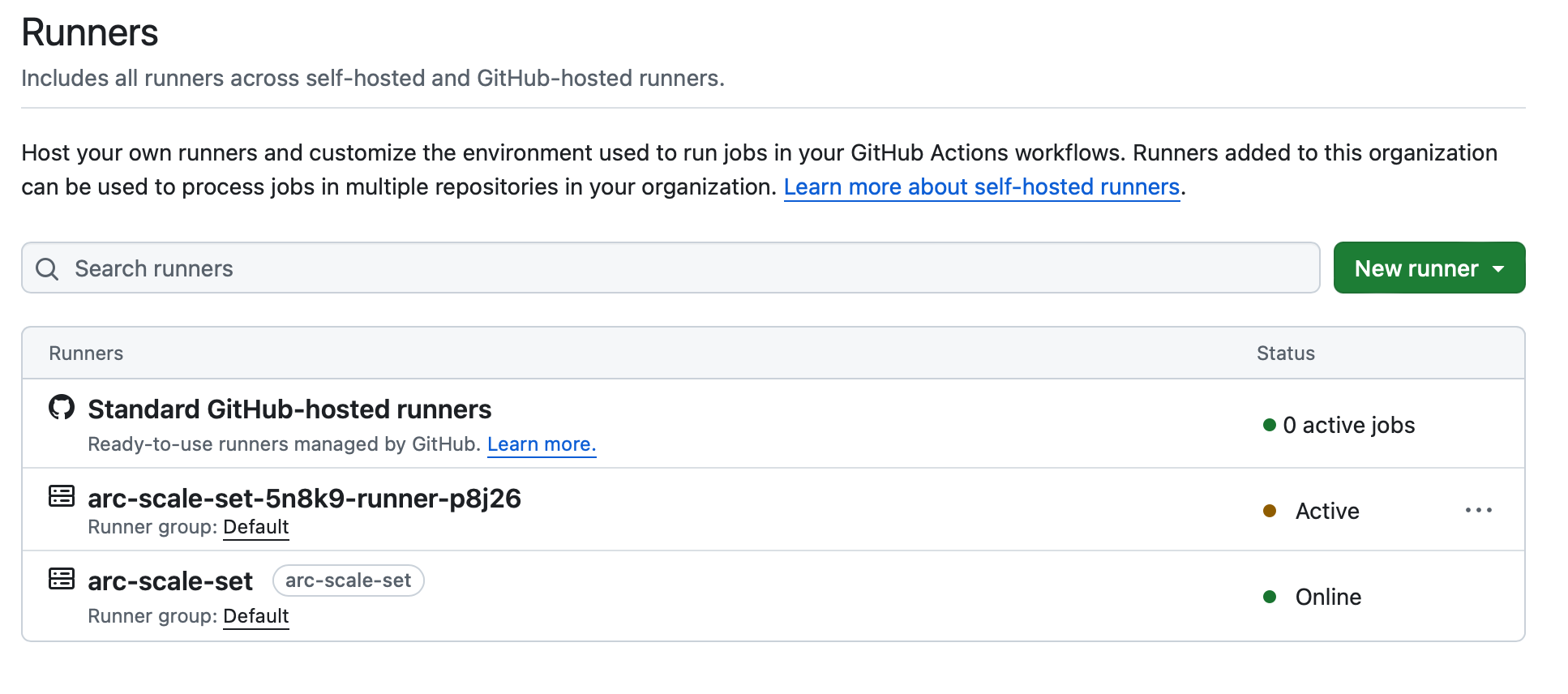

When a workflow is being executed, you should see runners created by the scale set in the GitHub org’s Runners section.
Conclusion
Embracing self-hosted GitHub Actions runners on Kubernetes, empowered by the Actions Runner Controller, unlocks a new level of control, efficiency, and scalability for your CI/CD pipelines. By automating the deployment and scaling of runners with Ansible, you streamline your operations and ensure your workflows have the resources they need, precisely when they need them. While the initial setup requires some effort, the long-term benefits in terms of performance, customization, and cost-effectiveness make it a worthwhile investment for any team serious about optimizing their CI/CD processes. So, dive in, experiment, and tailor your self-hosted runner setup to perfectly match your development workflow.
Should you have any doubts, kindly consult the official GitHub documentation on this topic.
Happy building!
